RELAY® | Limelight | $$ | 6 Seats
RELAY® | Limelight | $$ | 6 Seats

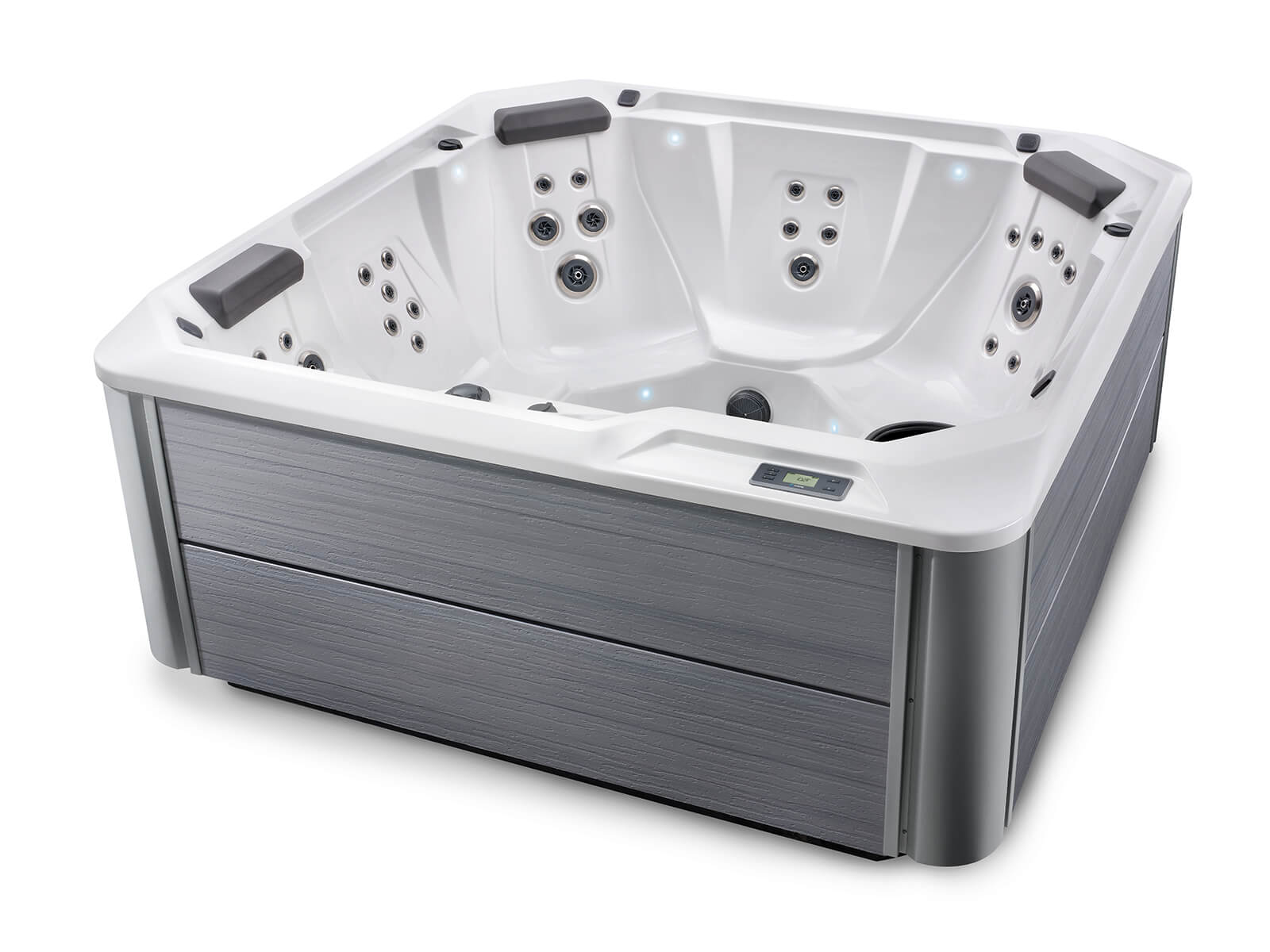

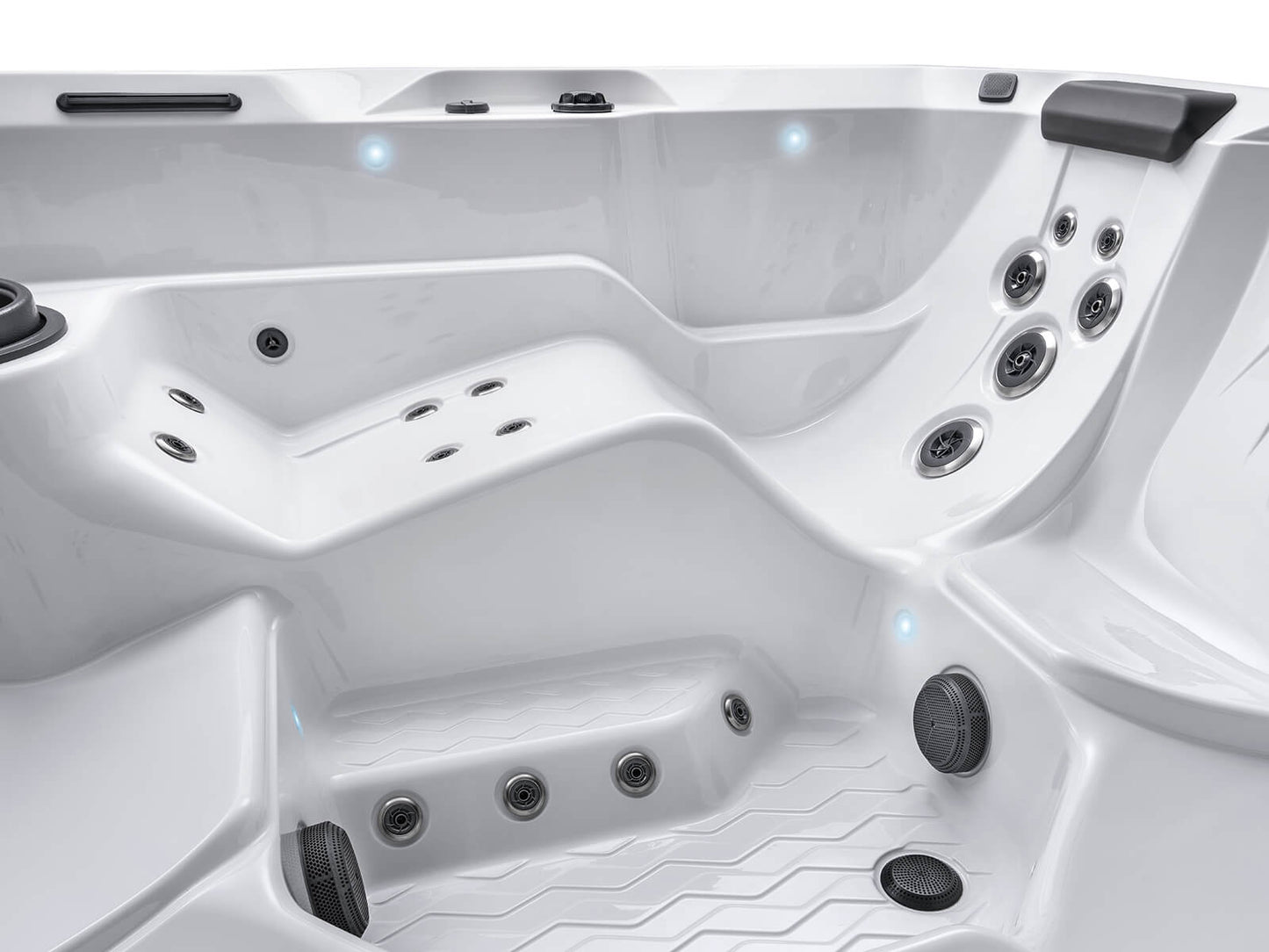

The Relay is a value-priced spa that seats six and includes a relaxing lounge seat. This versatile model offers 40 powerful jets for a different massage in each seat.
PEOPLE | 6 |
SEATING | Lounge |
VOLTAGE | 230 V |
DIMENSIONS | 7 x 7 x 36" |
WATER CARE | FROG® In-Line Cartridge Ready |
Share








VIEW THIS SPA IN YOUR SPACE
Shop and compare models virtually, in any color combination, and see how they look in your space with the Virtual View™AR app.
KEY SPECS
TOTAL SEATS
6 Seats (1 Lounge Included)
DIMENSIONS
7’ x 7’ x 36”
213 cm x 213 cm x 92 cm

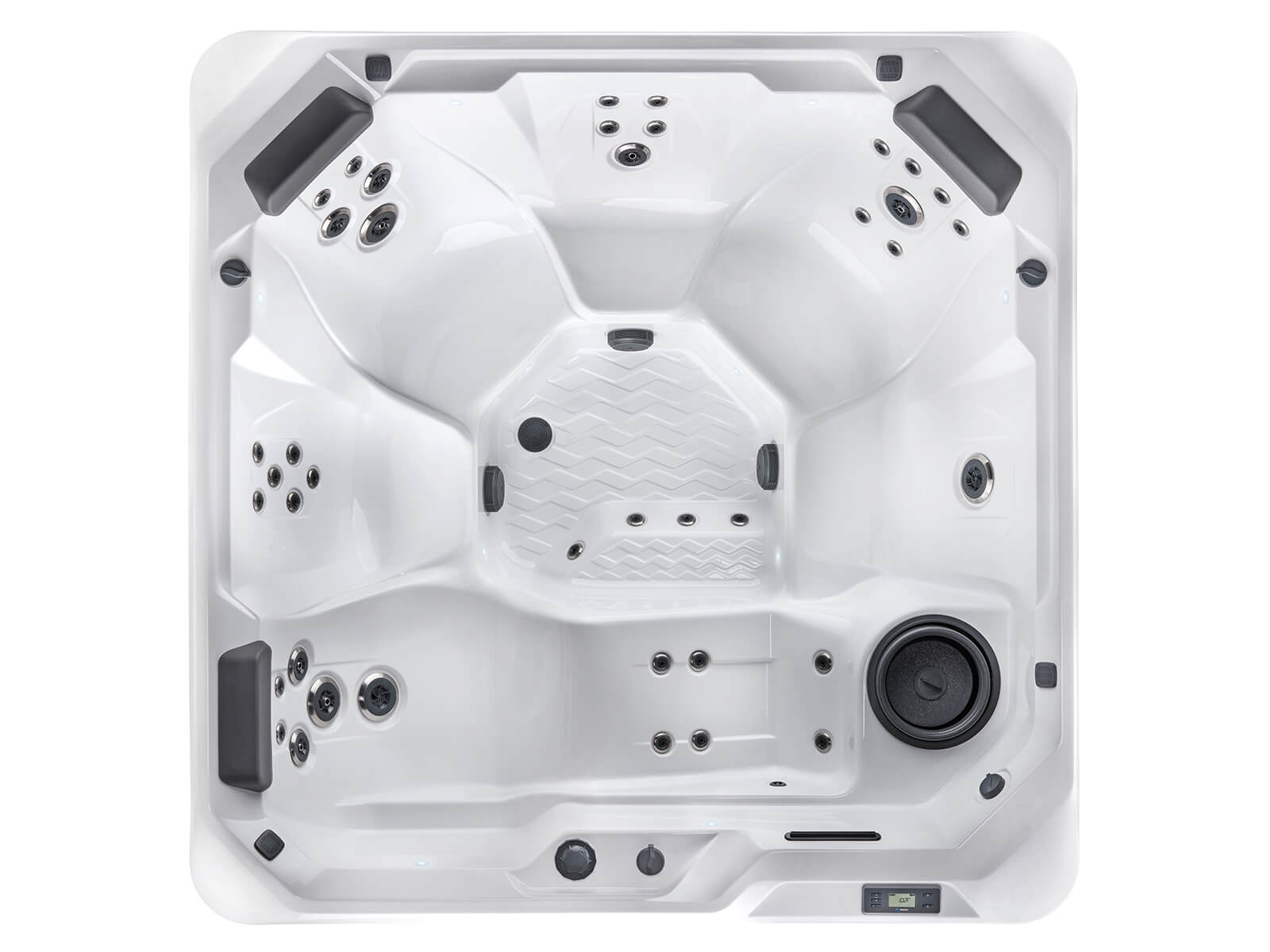

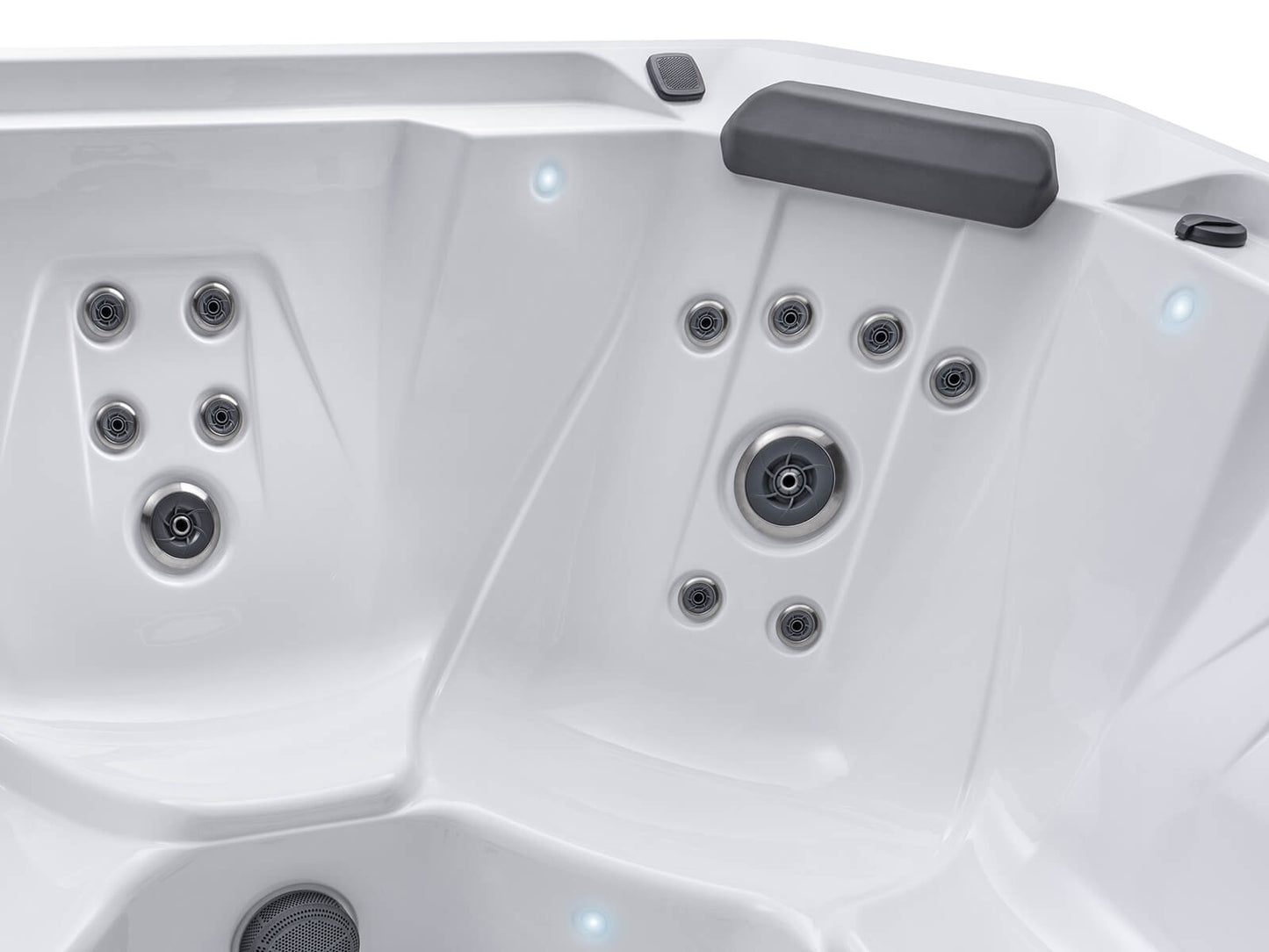

JETS & JET PUMPS
40 Jets
3 - XL Directional Hydromassage
2 - XL Rotary Hydromassage
3 - Directional Hydromassage
2 - Rotary Hydromassage
30 - Directional Precision®
Jet Pump 1
Wavemaster®6200
Two-Speed
1.5 HP Continuous Duty
3.2 HP Breakdown Torque
Jet Pump 2
Wavemaster®6000
One-Speed
1.5 HP Continuous Duty
3.2 HP Breakdown Torque
WATER CARE SYSTEM
FROG®In-Line Cartridge Ready
SMART MONITORING SYSTEM
N/A
VOLTAGE
230V
WATER CAPACITY & WEIGHT
Water Capacity: 330 g / 1,250 L
Dry Weight: 845 lb. / 383 kg
Filled Weight: 4,820 lb. / 2,185 kg
QUALITY, PERFORMANCE, AND VALUE.

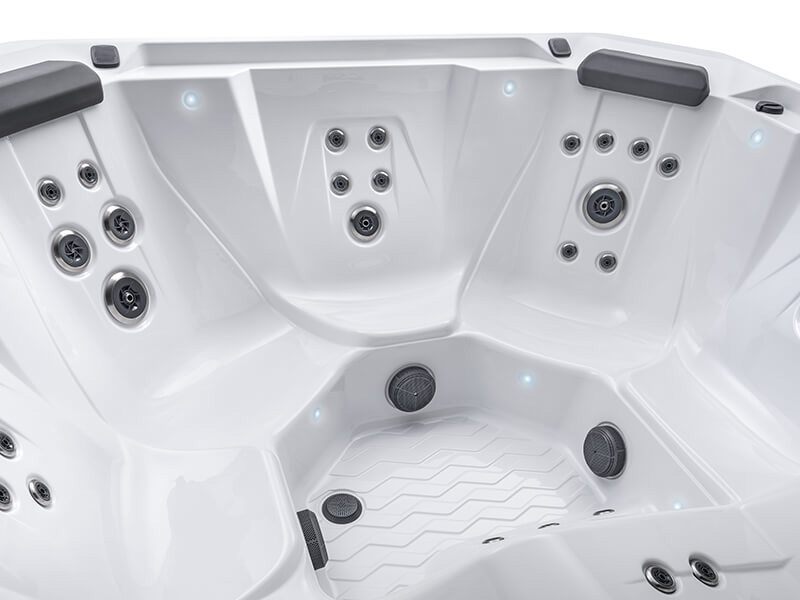

THE LEGENDARY HOT SPRING® MASSAGE
Comfortable seats with purposefully arranged jet systems that work together to target specific muscle groups. The result is a distinctive massage for your neck, shoulders, back, wrists, calves, and feet.

EASY WATER CARE
Crystal clear water is essential to a great spa experience. The Hot Spot® Collection's prefilled cartridges automatically release SmartChlor® sanitizer and minerals to keep water soft, clean, and clear with less effort.

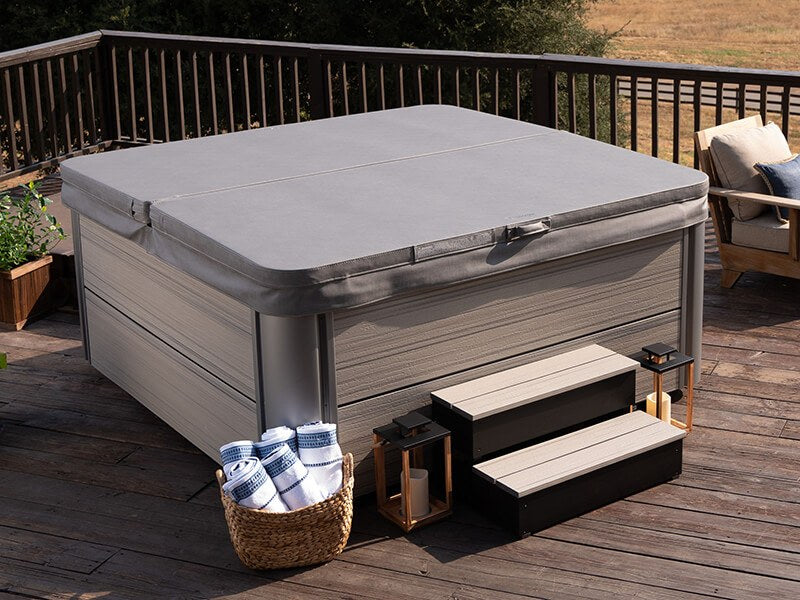

A LEADER IN ENERGY EFFICIENCY
Hot Spot Collection® spas offer the very best in energy saving designs and are equipped with an Energy Smart® System. A FiberCor® Foam Insulation and a Titanium No Fault® Heater work together to ensure that your spa will be hot when you are ready, all the while keeping energy costs low.

QUALITY AND DESIGN
You can count on lasting quality and unparalleled customer care from a global, top-selling brand. Thoughtfully engineered with leading technology, the highest quality of comfort and relaxation, visually stunning - Hot Spring® provides the Ultimate Hot Tub Ownership Experience®.
ADDITIONAL SPECS
CLEAN WATER FEATURES
Polyester Filters with Free-Flow Core
FROG®In-Line Cartridge Ready
Floor Drain
ENERGY EFFICIENCY
FiberCor® High Density Foam Insulation
Titanium No-Fault®4,000 W / 230 V Heater
Custom-Fit Insulated Cover, WeatherPro™4" Tapered Core with Hinge Seal
Polyethelyne Sealed Bottom
Meets California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
INTUITIVE CONTROL

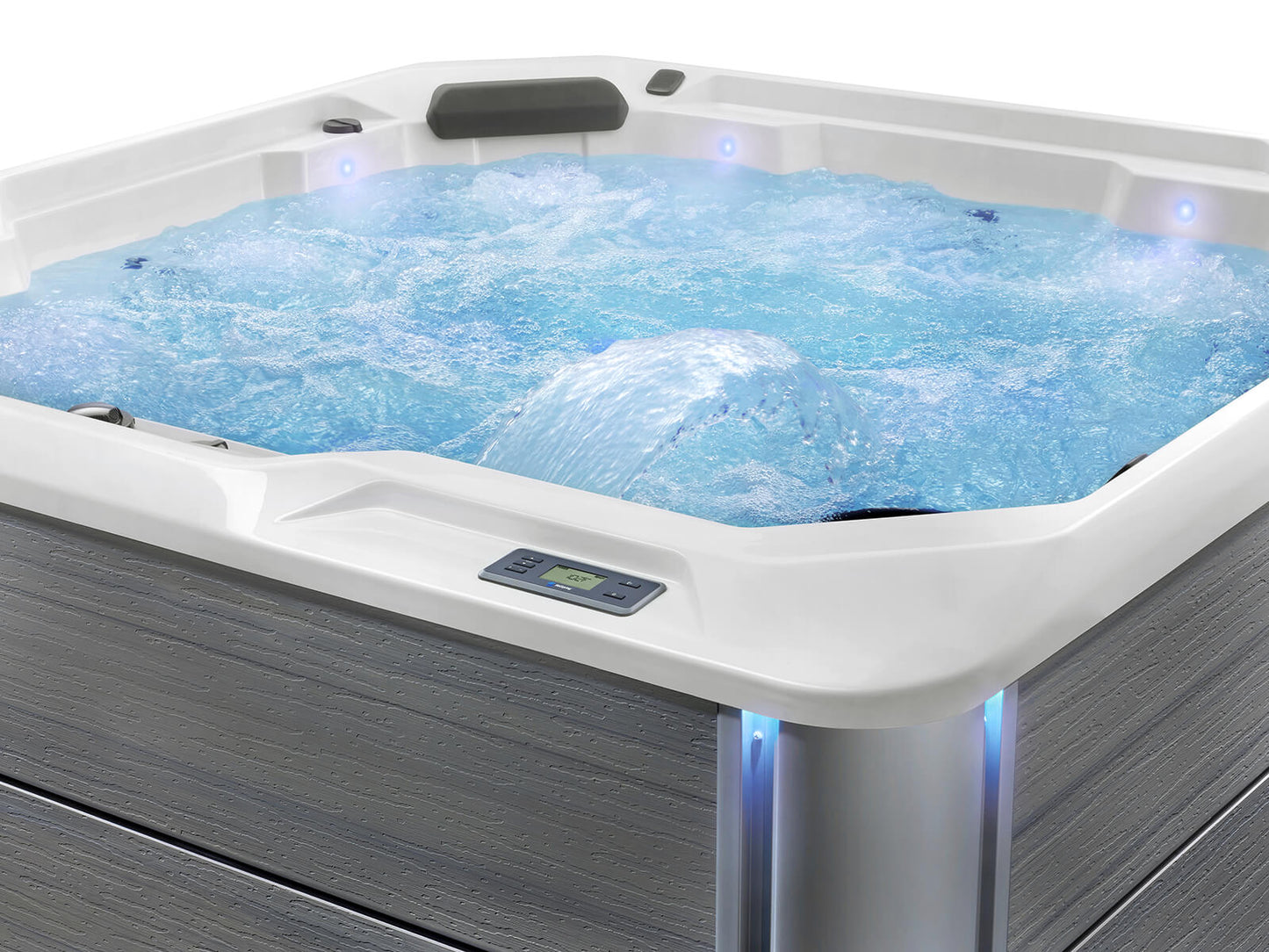

IQ 2020®with LCD Control
230 V / 50 amp, 60 Hz
Includes G.F.C.I. Protected Subpanel
DESIGN
Customizable Outer Cabinet and Shell

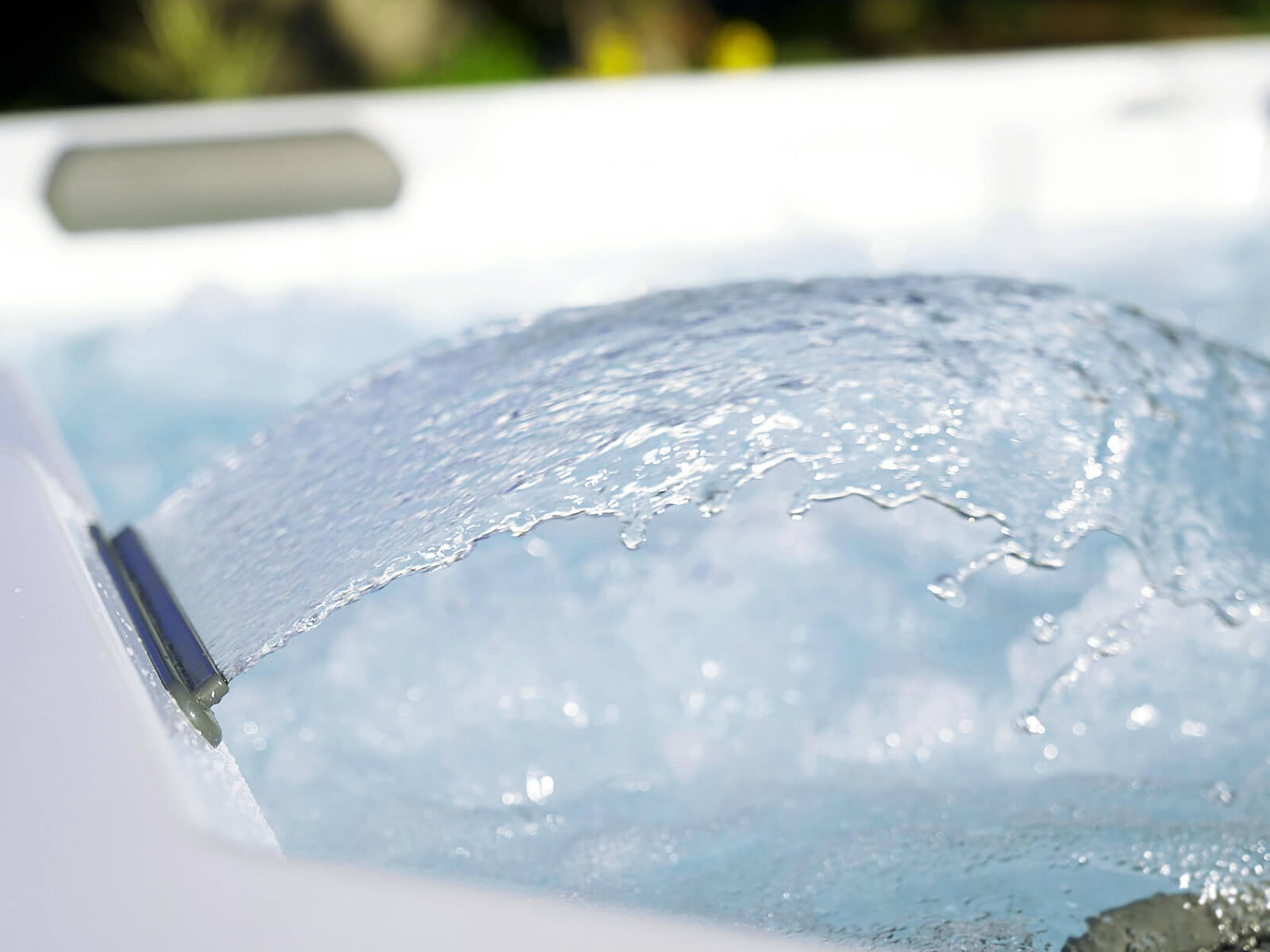

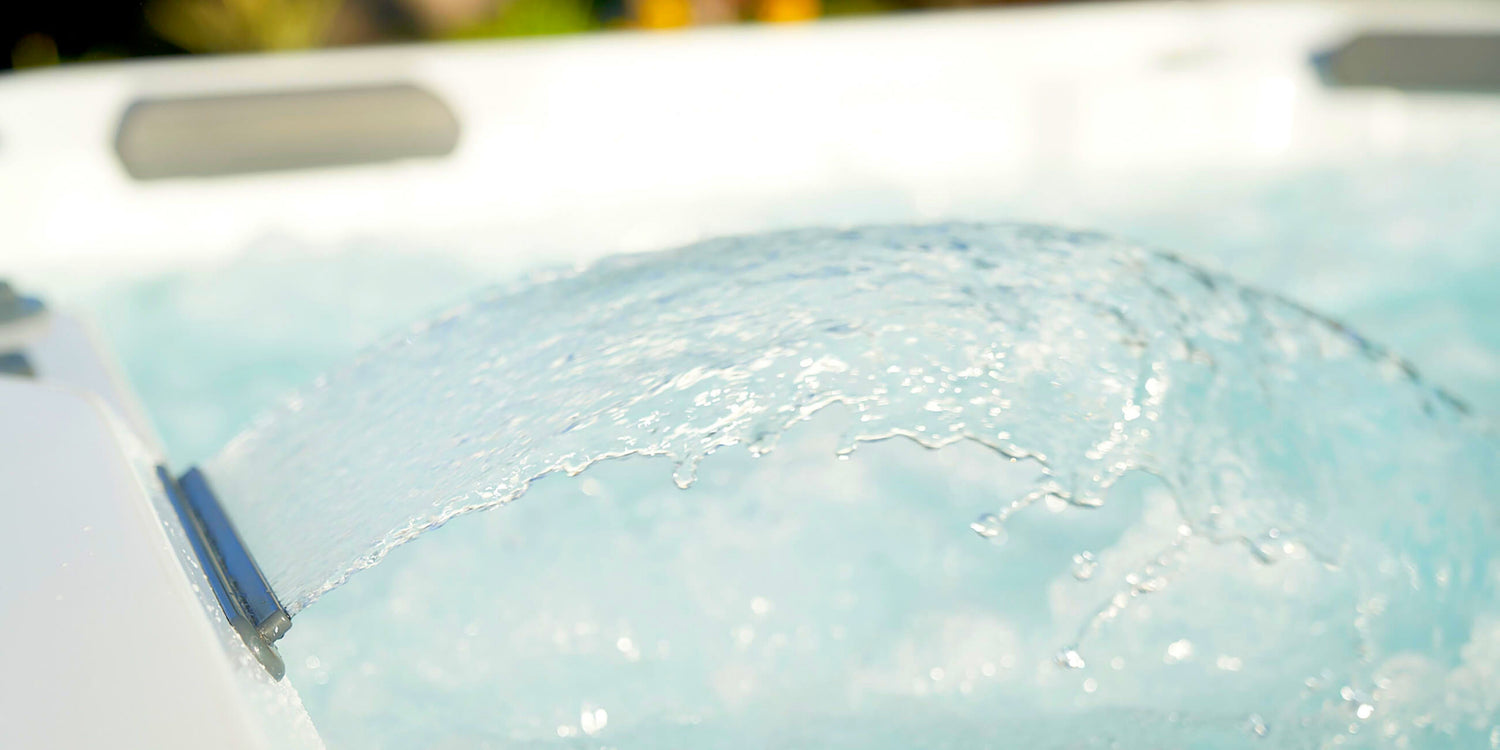

Waterfall Feature
Multi-Color LED Points of Light
Multi-Color LED Lighting with Timer
WARRANTY
No-Leak Shell: 5 Years
Shell Surface: 2 Years
Cabinet: 2 Years
No-Leak Plumbing: 2 Years
No-Fault® Heater: 2 Years
Component Warranty: 2 Years
Interior Light Assembly: 2 Years
